Updating Brain Firmware#

Updating Brain Firmware

This tutorial walks you through updating your Brain’s firmware in VEXcode IQ (2nd gen). By the end, you’ll have your Brain’s firmware up to date.

  1. Select the Connect button in the top-right of VEXcode.

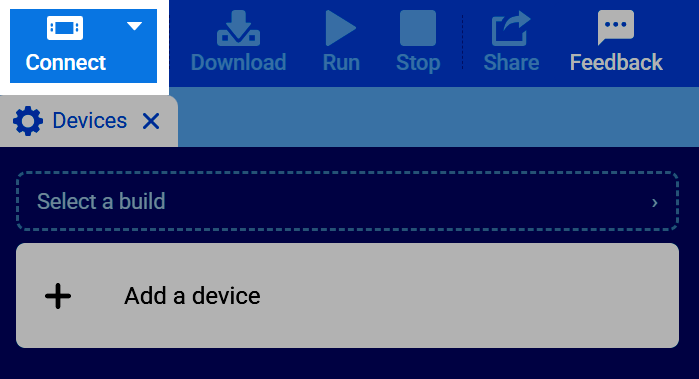

Screenshot of the VEXcode IQ (2nd gen) toolbar with the Connect button highlighted.

  1. To update your Brain, you must connect it to your device with a wired connection, using a USB cable. Select the Connect button under the Wired Connection section, next to USB.

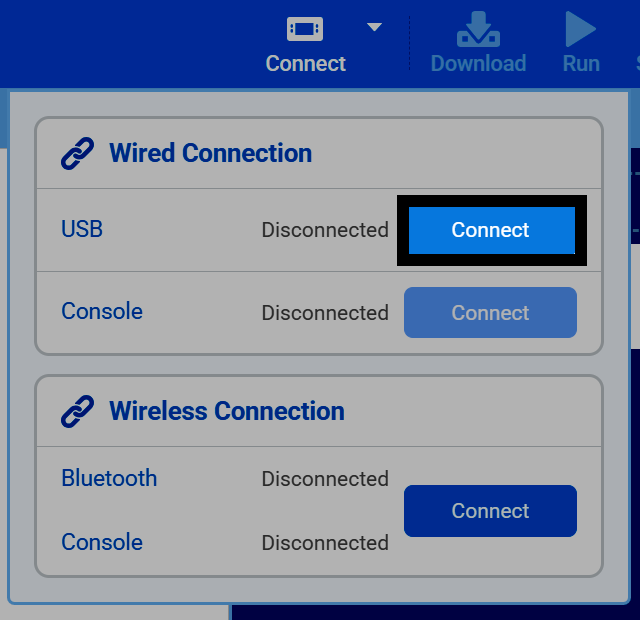

Screenshot of the Connect dialog, with the Connect button under the Wired Connection section highlighted, next to USB.

For help selecting the correct port on your device, see Connecting to Your Robot.

  1. If your Brain’s firmware is out of date, VEXcode will automatically start updating it.

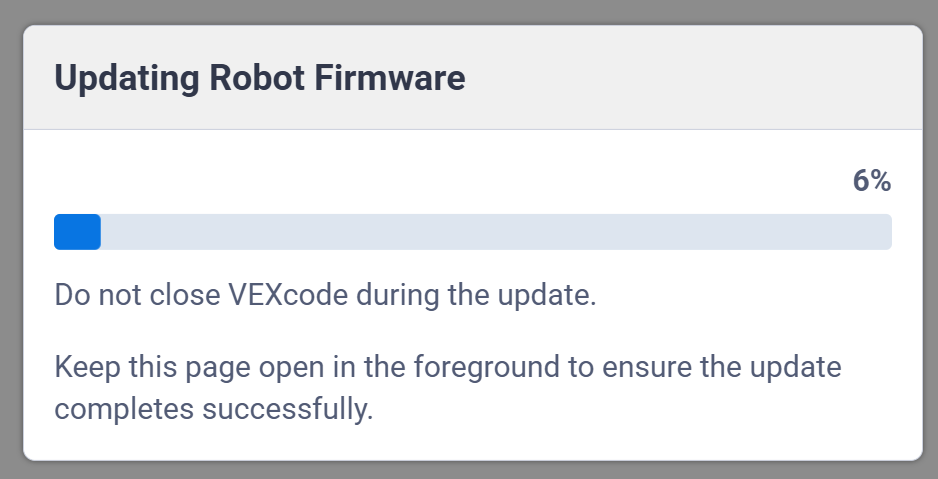

Screenshot of the Updating Robot Firmware dialog, showing the update's progress.

  1. Once the update is complete, select OK to finish. Reconnect the Brain to VEXcode to begin downloading projects to it again.

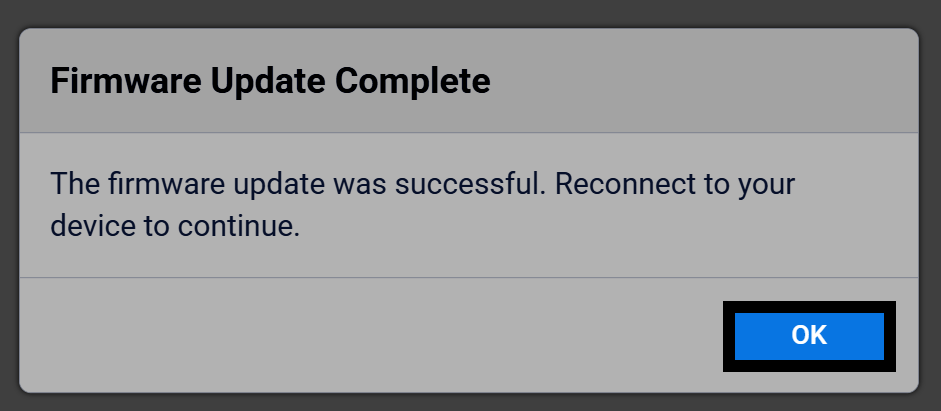

Screenshot of the Firmware Update Complete dialog, with the OK button highlighted.
