Moving Your Robot

This tutorial walks you through using the drive for block to move your robot forward and backward in VEXcode IQ (2nd gen). By the end, you’ll have a project that drives your robot forward, then in reverse.

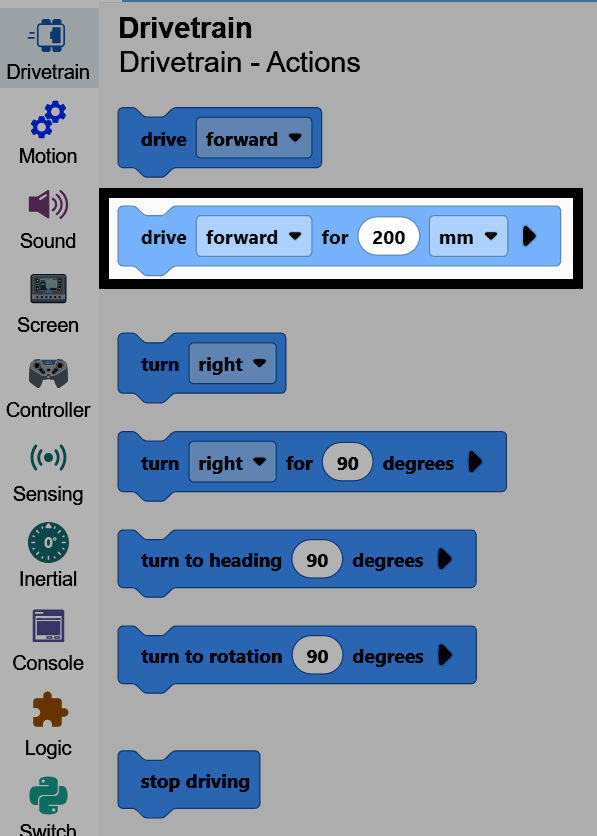

1. Make sure your robot is configured with a Drivetrain, so you see the Drivetrain blocks in the toolbox. See Configuring a Drivetrain if you haven’t added one yet.

2. Attach two drive for blocks below the when started block.

Two drive for blocks connected below when started.

cuando empezó
unidad [adelante v] para (200) [mm v] ▶
unidad [adelante v] para (200) [mm v] ▶

3. On the second block, change the direction parameter to reverse.

The second block’s direction changed to reverse.

cuando empezó
unidad [adelante v] para (200) [mm v] ▶
unidad [atrás v] para (200) [mm v] ▶

4. Make sure your robot is connected to VEXcode, then select Run to run the project. The robot will drive forward, then drive the same distance in reverse.
